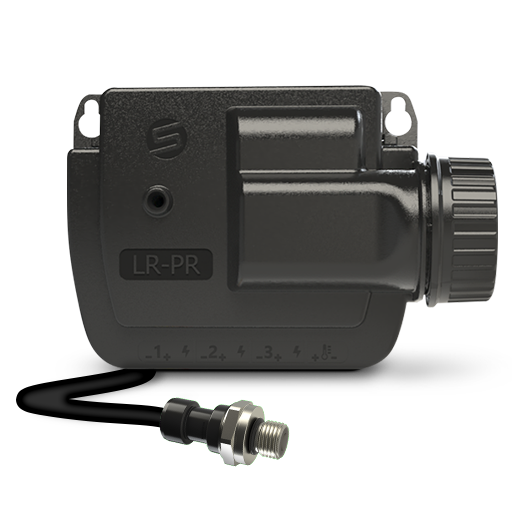

LR-PR
9V Pressure Sensor Module
The LR-PR is a kit composed of a Bluetooth® and LoRa sensor module equipped with a pressure sensor. The kit transmits pressure data from 0 to 232 PSI to the MySOLEM Platform and alerts you in case of abnormal pressure of your system.
Short-range & remote control
Features
Waterproof & Robust
IP68 Certified
Easy To Install
Ready-to-use kit with pre-wired pressure sensor.
Hydraulic Network Protection
Be notified in case of under- or overpressure of your system.
Specifications
Installation
0-232 PSI pressure sensor
Included and pre-wired.
Operating temperatures: -4°F to 140°F
Operation
9V Alkaline battery (6LR61 or 6AM6)
100% waterproof (IP68 Certified)
Bluetooth Smart 4.0 Low Energy
Bluetooth range: 33ft
LoRa™ radio communication
Connection to a WiFi or 4G gateway required.
Dimensions
5.9 in (W) x 3.54 in (H) x 2.16 in (D)
LR-PR
9V Pressure Kit
Control via MySOLEM App & Platform
Pressure sensor
(included & pre-wired)
LR-MS(1)
9V Sensor Module
Control via MySOLEM App & Platform
1 multi-sensor input
Pressure Switch compatible
LR-MS(4)
9V Sensor Module
Control via MySOLEM App & Platform
3 multi-sensor inputs
Pressure Switch compatible
1 temperature-dedicated input
